What is a Butterfly Valve Disc and what is its function?

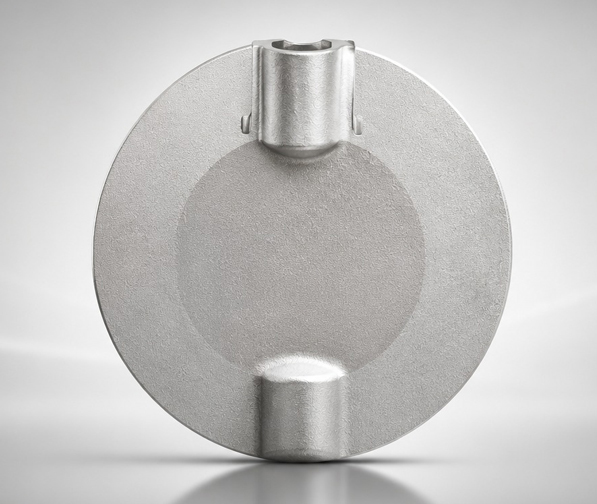

A Butterfly Valve Disc is a precision-machined rotating component positioned at the centre of a butterfly valve body. It controls the flow of liquids, gases, or slurries through a pipeline by rotating 90 degrees - from fully open to fully closed position offering quick, efficient flow regulation with minimal pressure drop.
What material grades are available for Butterfly Valve Discs at Srujan Group?

Srujan Group manufactures butterfly valve discs in a wide range of material grades including CF8, CF8M, CA15, 4A, 5A, 6A, Hastelloy, WCB, and SGI - catering to corrosive, high-temperature, and high-pressure application requirements across various industries.
What size range is available for Butterfly Valve Discs?

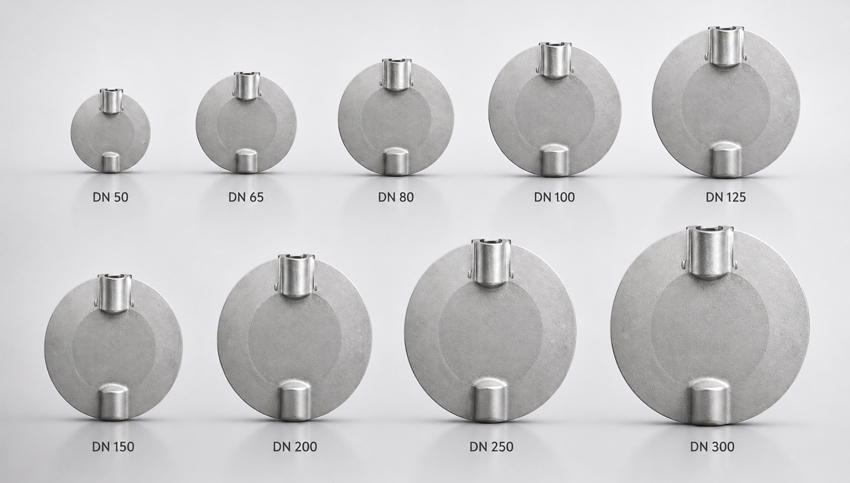

Our butterfly valve discs are available in size range of DN40 to DN350, suitable for a wide variety of pipeline and flow control applications across industrial sectors.
What types of Butterfly Valve Discs does Srujan Group manufacture?
- Centric Design
- Centric Design with Single Side Square Punch
- Spherical Design
- Spherical Design with Both Side Square Punch
- Fabricated Disc Design
- Double Offset Disc
What is the difference between a Centric and a Spherical Butterfly Valve Disc?

A Centric Disc has its stem axis aligned at the centre of the disc and pipe bore, making it ideal for low to medium pressure applications. A Spherical Disc features a curved profile that provides a tighter, more reliable seal under higher pressures, making it suitable for critical flow control applications in demanding industrial environments.
What is a Double Offset Butterfly Valve Disc?

A Double Offset Butterfly Valve Disc has two offsets - one from the pipe centreline and one from the disc seating surface centreline. This design reduces friction between the disc and seat during operation, resulting in lower wear, longer service life, and improved sealing performance under high-pressure conditions.
Which industries use Butterfly Valve Discs?
Butterfly valve discs manufactured by Srujan Group are used across a wide range of industries including:
- Oil & Gas and Petrochemical plants
- Chemical and Pharmaceutical processing
- Water treatment and fluid management
- Power generation plants
- Food & Beverage processing
- Automobile and hydraulic systems
- HVAC and fire protection systems
Is Srujan Group an ISO certified butterfly valve disc manufacturer?

Yes. Srujan Group is an ISO 9001:2015 certified manufacturer and exporter of precision-machined butterfly valve discs, ensuring every component meets international quality, dimensional accuracy, and performance standards.
Can Srujan Group manufacture Butterfly Valve Discs as per custom drawings or specifications?

Absolutely. Srujan Group specialises in transforming client-specific designs and drawings into precision-crafted butterfly valve discs. We offer complete customisation in terms of material grade, size, type, port configuration, and surface finish backed by in-house CNC machining capabilities.
