Srujan Group is a trusted Plano Milling Special Purpose Machine manufacturer and exporter in India, delivering custom-engineered, heavy-duty plano milling SPMs designed for high-precision flat surface machining of large, complex, and heavy components. With over 3.5 decades of SPM design and manufacturing experience, backed by ISO 9001:2015 certification, Srujan Group builds Plano Milling SPMs that deliver consistent dimensional accuracy, superior surface finish, and reliable performance in high-volume production environments.

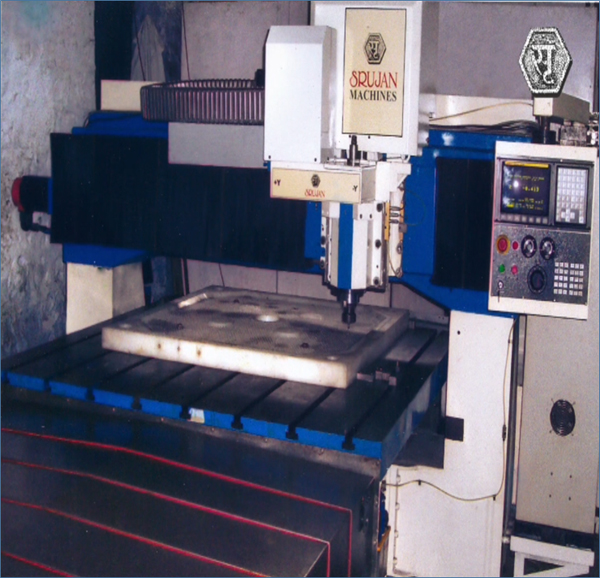

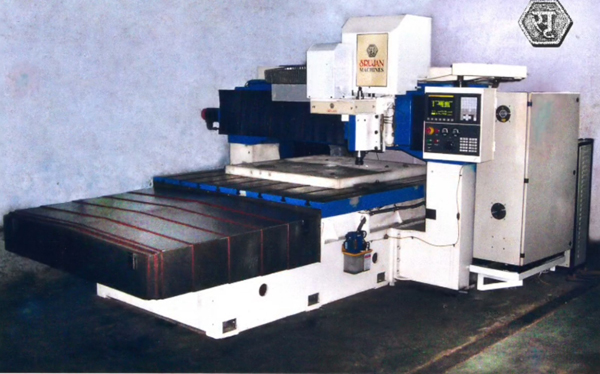

Our Plano Milling SPM is purpose-built to perform dedicated milling operations on large workpieces where standard milling machines fall short in rigidity, travel, and repeatability. Each machine is custom-designed around the client's component geometry, production targets, and floor space ensuring optimum output from day one.
| Parameter | Specification |
|---|---|
| Table Size | 500mm x 1500mm to 1000mm x 3000mm (custom available) |
| Table Load Capacity | Up to 2000 kg (customisable) |
| Longitudinal Travel (X-axis) | Up to 3000mm |
| Cross Travel (Y-axis) | Up to 1500mm |
| Vertical Travel (Z-axis) | Up to 800mm |
| Spindle Speed Range | 50 to 1500 RPM |
| Spindle Motor Power | 5.5 kW to 22 kW (as per requirement) |
| Feed Rate | 10 to 2000 mm/min (stepless) |
| Machine Structure | Heavy-duty fabricated steel construction |
| Control System | PLC-based / Manual / Semi-automatic |
| Coolant System | Included |
| Power Supply | 415V, 3-phase, 50Hz |
Note: All specifications are customisable as per client component and production requirements.
