Double Ended Multi Spindle Drilling SPM - Manufacturer & Exporter in India

  • Home
  • Double Ended Multi Spindle Drilling SPM - Manufacturer & Exporter in India
Get a Quote

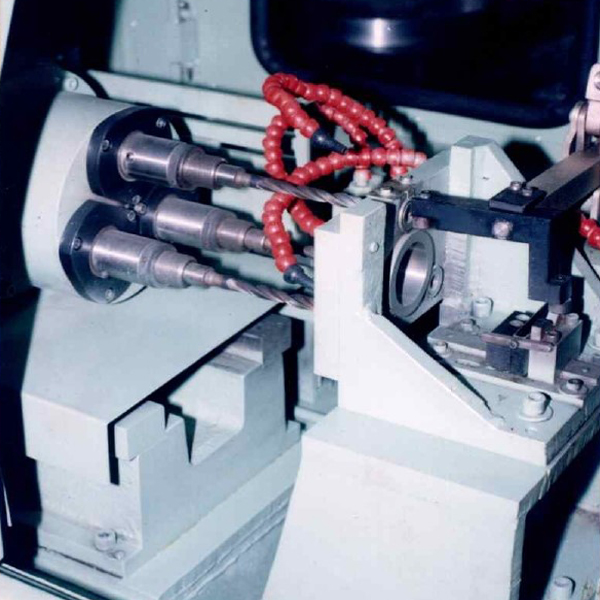

Double Ended Multi Spindle Drilling SPM Double Ended Multi Spindle Drilling SPM

Srujan Group is a specialized Double Ended Multi Spindle Drilling Special Purpose Machine manufacturer and exporter in India, delivering precision-engineered SPMs designed for simultaneous drilling operations from both ends of a component using multiple spindles in a single automated cycle. With over 3.5 decades of SPM design and manufacturing experience and ISO 9001:2015 certification, Srujan Group builds Double Ended Multi Spindle Drilling SPMs that deliver dramatic cycle time reduction, consistent hole accuracy, and exceptional throughput in high-volume dedicated production environments.

In modern high-volume manufacturing, drilling multiple holes simultaneously from both ends of a component rather than sequentially is a critical competitive advantage. Every second saved per component multiplies across thousands of parts per shift, directly impacting production cost and delivery timelines. Our Double Ended Multi Spindle Drilling SPM is purpose-engineered to deliver exactly this advantage — eliminating multiple setups, reducing handling time, and ensuring perfectly aligned, accurate holes from both ends in a single clamping.

Each machine is custom-designed around the client's component geometry, hole pattern, drilling diameter, depth specifications, and production targets - ensuring maximum drilling efficiency and accuracy from day one.

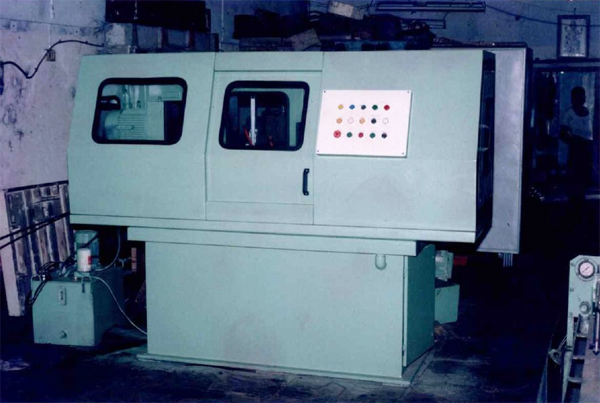

Double Ended Multi Spindle Drilling Spm Double Ended Multi Spindle Drilling Spm
Get a Quote icon Get a Quote icon
Technical Specifications (General Standard)
Parameter Specification
Machine Configuration Double Ended (simultaneous drilling from both sides)
Number of Spindles 2 to 16 per head (customisable)
Drilling Diameter Range 3mm to 50mm (customisable)
Drilling Depth Range Up to 300mm (customisable)
Hole Position Tolerance ±0.05mm or better
Spindle Speed Range 200 to 3000 RPM
Spindle Motor Power 2.2 kW to 15 kW per head
Feed Drive Hydraulic / Servo motor driven
Spindle Centre Distance As per component hole pattern drawing
Control System PLC-based automatic cycle
Component Holding Custom precision pneumatic / hydraulic fixtures
Coolant System Included
Power Supply 415V, 3-phase, 50Hz

Note: All specifications are fully customisable as per client component hole pattern, drilling diameter, and production requirements.

Why choose us

Srujan Group for Special Purpose Machines?

01
Expertise 3.5 decades of dedicated SPM design and manufacturing experience
02
In-House Manufacturing Complete in-house capability — design, fabrication, machining, assembly, and testing
03
ISO Certified Facility ISO 9001:2015 certified manufacturing facility in Ichalkaranji, Maharashtra
04
Custom engineering Custom engineering from concept to commissioning
05
Industry Clients Proven track record with leading valve and hydraulic industry clients
06
Quality Testing Competitive pricing with no compromise on quality
07
Support Installation, commissioning, and after-sales support included
Key Features of of Srujan Double Ended Multi Spindle Drilling SPM
  • Double ended configuration for simultaneous drilling from both sides in a single component clamping
  • Multi-spindle drilling heads with adjustable spindle centre distances for flexible hole patterns
  • High-rigidity machine structure eliminating vibration for accurate, consistent hole positioning
  • PLC-based fully automatic cycle control for repeatable, operator-independent drilling operations
  • Precision multi-spindle gearbox ensuring uniform spindle speed and torque across all spindles
  • Hydraulic or servo-driven feed units for smooth, controlled drilling depth and feed rate
  • Custom pneumatic or hydraulic component clamping fixtures for quick, repeatable loading
  • Integrated coolant system for extended drill life and superior hole finish
  • Automatic drill depth control with adjustable mechanical or electronic stops
  • In-built safety interlocks and full guarding for complete operator protection
  • Compact double ended machine layout optimised for minimal shop floor footprint
  • Compatible with HSS, carbide, and coated drill bits for various materials and hole sizes
  • Low maintenance design with easily accessible heads, gearboxes, and electrical panels
Advantages of Srujan Double Ended Multi Spindle Drilling SPM
  • Maximum Productivity - Simultaneous drilling from both ends with multiple spindles delivers the highest possible parts-per-shift output
  • Single Setup Accuracy - Both end drilling in one clamping eliminates repositioning errors and ensures perfect hole alignment
  • Dramatic Cycle Time Reduction - Multi-spindle simultaneous drilling reduces per-piece cycle time by up to 70% compared to sequential single spindle drilling
  • Consistent Hole Quality - Automated PLC cycles ensure uniform hole diameter, depth, and position across every component
  • Lower Per-Piece Cost - Higher throughput and reduced labour directly lower the manufacturing cost per component
  • Reduced Floor Space - Double ended design combines two drilling stations into one compact machine
  • Flexible Hole Patterns - Adjustable spindle centre distances accommodate various hole patterns without major machine changes
  • Custom Engineered - Every machine is built specifically around your component hole pattern and production targets
  • Proven Reliability - Backed by 3.5 decades of SPM design and manufacturing excellence at Srujan Group
Application Areas
Double Ended Multi Spindle Drilling SPM are widely used across:

Valve Industry

Valve bodies, bonnets, stuffing box bores, and seat bores requiring tight diameter tolerances

Hydraulic Systems

Hydraulic cylinder bores, manifold block ports, pump housings, and motor bodies

Automobile & Auto Components

Engine cylinder bores, connecting rod bores, transmission housings, and brake caliper bores

Aerospace & Defence

Precision structural components, actuator housings, and hydraulic system components

Compressor & Pump Industry

Compressor cylinder bores, pump casing bores, and impeller housings

Bearing & Bushing Industry

Bearing housing bores and bushing outer diameter finishing

Agricultural Equipment

Hydraulic cylinder and gear housing bores for tractors and farm machinery

General OEM & Precision Engineering

Any component requiring tight-tolerance, high-surface-finish internal bore finishing
FAQ Fine Boring SPM

  • What is a Double Ended Multi Spindle Drilling Special Purpose Machine?
    A Double Ended Multi Spindle Drilling SPM is a custom-engineered machine designed to simultaneously drill multiple holes from both ends of a component in a single automated cycle and clamping. Unlike conventional drilling machines that drill one hole at a time sequentially, this SPM uses multiple spindles on each end to drill all required holes simultaneously delivering dramatically higher throughput, perfect hole alignment, and consistent dimensional accuracy across high-volume production runs.
  • How many spindles can Srujan Group's Double Ended Multi Spindle Drilling SPM accommodate?
    Srujan Group's Double Ended Multi Spindle Drilling SPMs are available with 2 to 16 spindles per drilling head as standard with fully customisable spindle count and centre distances based on the client's component hole pattern, drilling diameter, and production requirements.
  • What drilling diameter range is supported by Srujan's Double Ended Multi Spindle Drilling SPM?
    Srujan Group's Double Ended Multi Spindle Drilling SPM supports drilling diameters from 3mm to 50mm as standard fully customisable based on client component specifications, material, and required hole tolerance.
  • What are the key advantages of a Double Ended Multi Spindle Drilling SPM over conventional drilling machines?
    A Double Ended Multi Spindle Drilling SPM offers several critical advantages over conventional drilling machines including simultaneous drilling from both ends in a single clamping, multi-hole drilling in one cycle, up to 70% reduction in per-piece cycle time, elimination of repositioning errors, consistent hole position accuracy, lower labour cost per component, and significantly higher parts-per-shift output making it the preferred choice for high-volume dedicated drilling operations.
  • What hole position tolerance does Srujan's Double Ended Multi Spindle Drilling SPM achieve?
    Srujan Group's Double Ended Multi Spindle Drilling SPM consistently achieves hole position tolerances of ±0.05mm or better ensuring accurate, repeatable hole positioning that meets the functional requirements of valve, hydraulic, and automobile component manufacturing.
  • What industries use Double Ended Multi Spindle Drilling Special Purpose Machines?
    Double Ended Multi Spindle Drilling SPMs are widely used in the valve industry, hydraulic systems, automobile and auto components, aerospace and defence, compressor and pump industry, agricultural equipment, electrical and power equipment, and general OEM precision engineering wherever simultaneous multi-hole drilling from both ends is required at high production volumes.
  • What type of component clamping system is used in Srujan's Double Ended Multi Spindle Drilling SPM?
    Srujan Group's Double Ended Multi Spindle Drilling SPMs use custom-designed pneumatic or hydraulic component clamping fixtures engineered specifically for the client's component geometry to ensure accurate, repeatable component location, secure clamping during drilling, and quick loading and unloading for minimal cycle time between parts.
  • Can Srujan Group build a Double Ended Multi Spindle Drilling SPM as per my component drawing?
    Yes. Srujan Group specialises in designing and manufacturing custom Double Ended Multi Spindle Drilling SPMs based on client-provided component drawings, hole pattern specifications, drilling diameter and depth requirements, production targets, and cycle time expectations. Our engineering team manages everything from machine concept and design to fabrication, assembly, testing, and on-site commissioning.
  • Is Srujan Group an ISO certified Double Ended Multi Spindle Drilling SPM manufacturer?
    Yes. Srujan Group is an ISO 9001:2015 certified Double Ended Multi Spindle Drilling SPM manufacturer and exporter based in Ichalkaranji, Maharashtra, India. Every machine is designed, fabricated, assembled and performance-verified under a strict quality management system ensuring consistent drilling accuracy, machine reliability, and long-term production performance for every client.
