Hydraulic Power Packs
SRUJAN caters to key sectors including Valve manufacturing, Automotive components, and Industrial machinery.
  • Engineering and Manufacturing of Special Purpose Machines (SPM)
  • Precision machining of Valve, Automotive and Industrial Components
  • Hydraulic Power Systems & Fluid Power Technology Solutions

Hydraulic Power Pack for Hydraulic Cylinders - Manufacturer & Exporter in India

  • Home
  • Hydraulic Power Pack for Hydraulic Cylinders - Manufacturer & Exporter in India
Get a Quote

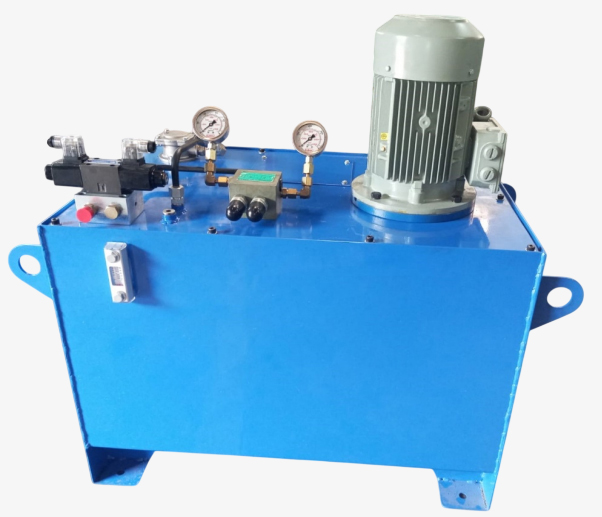

Hydraulic Power Pack For Hydraulic Cylinders Hydraulic Power Pack For Hydraulic Cylinders

Srujan Group is a trusted Hydraulic Power Pack for Hydraulic Cylinders manufacturer and exporter in India, delivering precision-engineered hydraulic power units specifically designed to power single and double acting hydraulic cylinders across a vast range of industrial, construction, agricultural, and material handling applications. With over 3.5 decades of hydraulic system manufacturing experience, Srujan Group builds hydraulic cylinder power packs that deliver consistent pressure, smooth cylinder extension and retraction, precise force control, and long-term reliability across every duty cycle and application environment.

Hydraulic cylinders are among the most widely used actuators in industrial and mobile machinery - converting hydraulic pressure into precise linear force and motion for lifting, pushing, pulling, pressing, tilting, and positioning applications. The performance, force accuracy, and speed of every hydraulic cylinder is directly determined by the quality and consistency of the hydraulic power pack driving it. Any pressure fluctuation, flow inconsistency, or contamination in the hydraulic power unit directly translates into erratic cylinder movement, force variation, and premature cylinder seal failure.

Our Hydraulic Power Pack for Hydraulic Cylinders is purpose-engineered to deliver stable, consistent hydraulic pressure and controlled flow to hydraulic cylinders of all sizes and configurations ensuring smooth, precise, and reliable cylinder operation across every stroke, shift after shift. Whether powering a single hydraulic cylinder on a compact machine or controlling multiple cylinders simultaneously in a complex multi-actuator system, Srujan Group designs and builds the hydraulic power pack as a complete, integrated cylinder actuation solution.

Each power pack is custom-engineered to application specifications covering cylinder bore, stroke, operating pressure, flow rate, cycle frequency, tank capacity, valve configuration, and control requirements.

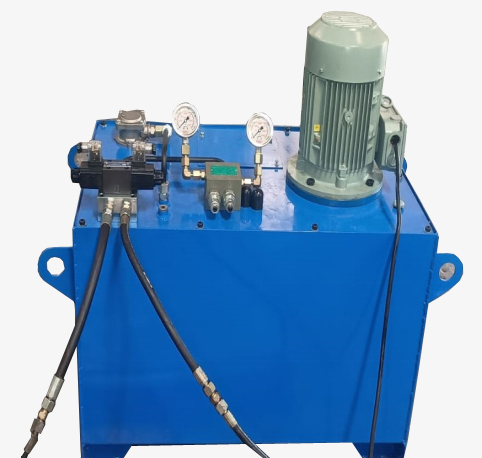

Hydraulic Power Pack For Hydraulic Cylinder Testing Hydraulic Power Pack For Hydraulic Cylinder Testing
Get a Quote icon Get a Quote icon
Technical Specifications (General Standard)
Parameter Specification
Tank Capacity 10 Ltr to 500 Ltr (customisable)
Motor Range 0.75 KW to 37 KW (as per requirement)
Type of Motor Flange Mounting / Foot Mounting / Oil Immersed
Motor Phase Single Phase & Three Phase
Pump Type Gear Pump / Vane Pump / Piston Pump
Pump Range 2 LPM to 100 LPM (customisable)
Operating Pressure Up to 350 Bar (customisable)
Cylinder Configuration SSingle Acting / Double Acting
Number of Cylinder Circuits Single to Multi-circuit (as per requirement)
Valve Configuration Custom manifold as per cylinder circuit
Control System Manual / PLC / CNC interface
Hydraulic Fluid Mineral hydraulic oil
Tank Material Cold Rolled Steel (CRS) - Powder Coated
Cooling System Air cooled / Water cooled (as per duty cycle)
Mounting Vertical / Horizontal / Mobile / Integrated
Power Supply 230V Single Phase / 415V Three Phase, 50Hz

Note: All specifications are fully customisable as per CNC, VMC, HMC machine tool hydraulic circuit design, operating pressure, noise requirements, and duty cycle.

Why choose us

Srujan Group for Hydraulic Power Pack for Hydraulic Cylinders?

01
Expertise Specialised hydraulic cylinder power pack manufacturer with 3.5 decades of hydraulic system expertise
02
In-House Manufacturing hydraulic circuit design, power pack fabrication, assembly, and testing
03
Flexible Configurations Wide range of tank, motor, and pump configurations for all parking system types
04
Wide application Wide application coverage single cylinder to complex multi-cylinder system power pack engineering
05
Custom Engineering Custom valve manifold design for precise multi-cylinder sequencing, synchronisation, and force control
06
Quality Testing Pre-delivery hydraulic performance and cylinder circuit pressure verification testing
07
Trusted Across India Trusted by leading industrial machinery, SPM, and engineering industry clients across India
Key Features of Srujan Hydraulic Power Pack for Hydraulic Cylinders
  • Purpose-engineered hydraulic power unit for precise, controlled actuation of single and double acting hydraulic cylinders
  • Custom multi-circuit valve manifold for simultaneous independent control of multiple hydraulic cylinders
  • Wide operating pressure range up to 350 Bar covering light-duty to heavy-duty cylinder force requirements
  • Precise flow control valves for accurate cylinder speed regulation in both extension and retraction directions
  • Pressure relief valve and sequence valves for safe, controlled multi-cylinder sequencing operations
  • Directional control valves for smooth, responsive cylinder direction reversal and mid-stroke positioning
  • Single and double acting cylinder circuit compatibility with appropriate valve and tank vent configurations
  • Fast cylinder response through optimised pump selection and minimal circuit pressure drop design
  • Pressure holding circuit for sustained cylinder force applications without continuous pump operation
  • Wide motor range from 0.75 KW to 37 KW covering compact single cylinder to large multi-cylinder systems
  • Robust MS tank with powder coat finish and adequate capacity for sustained cylinder duty cycles
  • Integrated high-efficiency filtration system — suction strainer and return line filter protecting cylinder seals from contamination
  • Air cooled and water cooled options for high frequency continuous cylinder actuation applications
  • Low maintenance design with easy access for cylinder circuit adjustments and component servicing
Advantages of Srujan Hydraulic Power Pack for Hydraulic Cylinders
  • Smooth Cylinder Operation - Consistent hydraulic pressure and controlled flow delivers smooth, jerk-free cylinder extension and retraction across every stroke
  • Precise Force Control - Accurate pressure regulation ensures consistent, repeatable cylinder force - critical for pressing, clamping, and load positioning applications
  • Accurate Speed Control - Flow control valves enable precise cylinder speed adjustment for both extension and retraction independently — matching exact application requirements
  • Multi-Cylinder Simultaneous Control - Custom multi-circuit manifold enables independent simultaneous control of multiple cylinders from a single integrated power unit
  • Extended Cylinder Seal Life - Clean hydraulic fluid through integrated filtration and stable pressure prevents premature cylinder seal wear and failure
  • Energy Efficient - Pressure holding circuit and efficient pump selection significantly reduce power consumption in sustained force and positioning applications
  • Flexible Application Coverage - Wide pressure, flow, motor, and tank range covers everything from compact single cylinder machines to large multi-cylinder industrial systems
  • Reliable Continuous Duty - Robust components, adequate tank sizing, and cooling options sustain reliable performance through high-frequency continuous cylinder actuation
  • Custom Engineered — Every power pack designed around exact cylinder specifications, operating pressure, flow, and application duty cycle requirements
  • Proven Expertise - Backed by 3.5 decades of hydraulic cylinder power pack manufacturing excellence at Srujan Group
Application Areas
Srujan Group's Hydraulic Power Packs for Hydraulic Cylinders are used across:

Industrial Manufacturing

  • Press & Forming Machines - Hydraulic cylinder power for metal pressing, deep drawing, punching, and forming operations.
  • Injection Moulding Machines - Hydraulic cylinder actuation for mould clamping, injection, and ejection systems.
  • Die Casting Machines - High-pressure hydraulic cylinder power for die casting shot, clamping, and ejection circuits.
  • Hydraulic Press Brakes - Controlled hydraulic cylinder force for precision sheet metal bending operations.

Material Handling & Lifting

  • Hydraulic Dock Levellers - Smooth hydraulic cylinder operation for loading dock platform lifting and positioning.
  • Scissor Lift Tables - Precise hydraulic cylinder control for material handling and assembly workstation lifts.
  • Hydraulic Tippers & Dumpers - Reliable hydraulic cylinder power for tipper body raising and lowering.
  • Crane & Hoist Systems - Hydraulic cylinder actuation for outrigger, boom, and stabiliser systems.

Construction & Infrastructure

  • Hydraulic Jacks & Cylinders - High-force hydraulic power for structural lifting, bridge jacking, and foundation work.
  • Tunnel Boring Equipment - High-pressure cylinder power for tunnel boring machine thrust and steering systems.
  • Formwork & Shuttering Systems - Hydraulic cylinder actuation for concrete formwork positioning and stripping.

Agriculture & Off-Highway

  • Agricultural Machinery - Hydraulic cylinder power for tractor-mounted implements, ploughs, and harvesting equipment.
  • Construction Equipment - Hydraulic cylinder actuation for excavator, loader, and dozer attachment systems.

Special Purpose & Automation

  • SPM Hydraulic Feeding Cylinders - Controlled cylinder feed for dedicated SPM cutting tool advancement.
  • Welding Positioners - Hydraulic cylinder actuation for component tilting and positioning during welding.
  • Testing Machines - Controlled hydraulic cylinder force for component fatigue, compression, and tensile testing.
FAQ Hydraulic Power Pack for Hydraulic Cylinders

  • What is a Hydraulic Power Pack for Hydraulic Cylinders?
    A Hydraulic Power Pack for Hydraulic Cylinders is a self-contained hydraulic power unit comprising a motor, pump, tank, directional control valves, flow control valves, pressure relief valves, and filters designed to generate and supply precisely controlled hydraulic pressure and flow to power single and double acting hydraulic cylinders across industrial, construction, material handling, agricultural, and special purpose machine applications. It directly determines the force output, speed, smoothness, and reliability of every hydraulic cylinder it powers.
  • What is the difference between a Single Acting and Double Acting Hydraulic Cylinder Power Pack?
    A Single Acting Cylinder Power Pack supplies hydraulic pressure to extend the cylinder in one direction only with gravity, spring, or external load returning the cylinder on the retraction stroke. It requires a simpler valve circuit and tank vent arrangement. A Double Acting Cylinder Power Pack supplies controlled hydraulic pressure to both extend and retract the cylinder requiring a directional control valve and two-port cylinder connections providing full force and speed control in both stroke directions. Srujan Group manufactures power packs for both cylinder configurations.
  • What operating pressure range is available in Srujan's Hydraulic Cylinder Power Packs?
    Srujan Group's Hydraulic Power Packs for Hydraulic Cylinders support operating pressures up to 350 Bar covering light-duty single cylinder positioning applications through to heavy-duty high-force pressing, clamping, jacking, and construction equipment cylinder requirements.
  • Can Srujan's Hydraulic Power Pack control multiple hydraulic cylinders simultaneously?
    Yes. Srujan Group's Hydraulic Power Packs for Hydraulic Cylinders feature custom multi-circuit valve manifolds capable of simultaneously controlling multiple hydraulic cylinders independently enabling complex multi-cylinder sequencing, synchronised cylinder movement, and independent force control for each cylinder circuit from a single integrated hydraulic power unit.
  • How does clean hydraulic fluid protect hydraulic cylinder seals?
    Hydraulic cylinder seal failure is one of the most common causes of cylinder leakage and downtime and contaminated hydraulic fluid is the primary cause of premature seal wear. Srujan Group's hydraulic cylinder power packs incorporate high-efficiency integrated filtration suction strainer and return line filter maintaining clean hydraulic fluid throughout operation. Clean fluid significantly extends cylinder seal life, reduces internal cylinder wear, and prevents premature cylinder failure lowering maintenance cost and maximising cylinder service life.
  • Which industries and applications use Hydraulic Power Packs for Hydraulic Cylinders?
    Srujan Group's Hydraulic Cylinder Power Packs are used across press and forming machines, injection moulding, die casting, press brakes, dock levellers, scissor lifts, hydraulic tippers, crane and hoist systems, hydraulic jacks, tunnel boring equipment, agricultural machinery, construction equipment, SPM feeding cylinders, welding positioners, and component testing machines — wherever precise, reliable hydraulic cylinder actuation is required.
  • What flow control options are available for cylinder speed regulation?
    Srujan Group's Hydraulic Power Packs for Hydraulic Cylinders incorporate precision flow control valves enabling independent speed adjustment for cylinder extension and retraction strokes allowing exact cylinder speed matching to application requirements. Meter-in, meter-out, and bleed-off flow control configurations are available depending on the cylinder load characteristics and speed control precision required.
  • Can a Hydraulic Power Pack for Cylinders be used on mobile or off-highway equipment?
    Yes. Srujan Group manufactures mobile hydraulic power packs for off-highway and construction equipment cylinder applications - featuring robust construction for vibration and shock resistance, compact footprint for vehicle mounting, and compatibility with mobile hydraulic system requirements including DC motor options for battery-powered mobile cylinder applications.
  • Is Srujan Group Hydraulic Power Pack for Hydraulic Cylinders manufacturer?
    Yes. Srujan Group is Hydraulic Power Pack for Hydraulic Cylinders manufacturer, supplier, and exporter based in Ichalkaranji, Maharashtra, India. Every hydraulic cylinder power pack is designed, fabricated, assembled, and performance-tested under a strict quality management system ensuring consistent cylinder actuation performance, reliable multi-circuit operation, and long-term hydraulic system dependability across every application.
