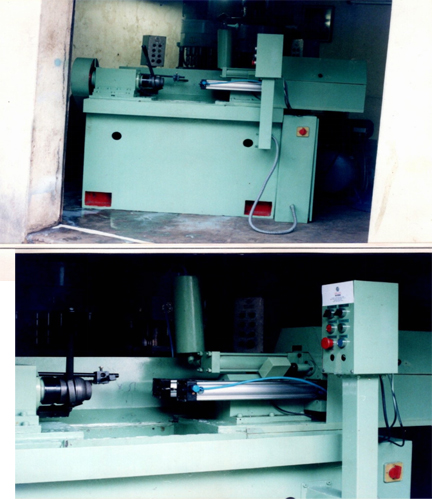

Srujan Group is a trusted manufacturer and supplier of Deep Hole Drilling Machines with Wood Pecking and Torque Sensing in Kolhapur, Maharashtra, India. Our advanced Special Purpose Machine (SPM) is designed for precision deep hole drilling applications where high accuracy, consistent hole quality, and reliable tool protection are essential.
The machine incorporates Wood Pecking Technology, which performs controlled intermittent drilling cycles to improve chip evacuation, reduce heat generation, and extend tool life. Additionally, the Torque Sensing System continuously monitors spindle load and automatically responds to overload conditions, protecting the cutting tool and workpiece while ensuring uninterrupted production.
Engineered with advanced CNC technology, precision spindle assemblies, and robust machine construction, Srujan Group Deep Hole Drilling Machines deliver exceptional drilling performance for automotive, aerospace, hydraulic, defence, and precision engineering industries.
| Parameter | Specification |
|---|---|
| Machine Type | Deep Hole Drilling Special Purpose Machine |
| Operation | Fully Automatic |
| Control System | CNC / PLC with Touch Screen HMI |
| Drilling Capacity | Up to Ø30 mm (Application Dependent) |
| Maximum Drilling Depth | Up to 1000 mm (Customizable) |
| Spindle Speed | 500 -6000 RPM |
| Feed Rate | Servo Controlled |
| Pecking Cycle | Programmable Wood Pecking |
| Torque Monitoring | Real-Time Torque Sensing System |
| Positioning Accuracy | ±0.01 mm |
| Repeatability | ±0.005 mm |
| Work Holding | Hydraulic / Pneumatic Fixture |
| Coolant System | High-Pressure Coolant Circulation |
| Lubrication | Automatic Centralized Lubrication |
| Power Supply | 415V AC, 3 Phase, 50 Hz |
| Installed Power | 10 - 30 kW |
| Machine Construction | Heavy-Duty Fabricated Steel |
Note: All specifications are fully customisable as per client component bore geometry and production requirements.
